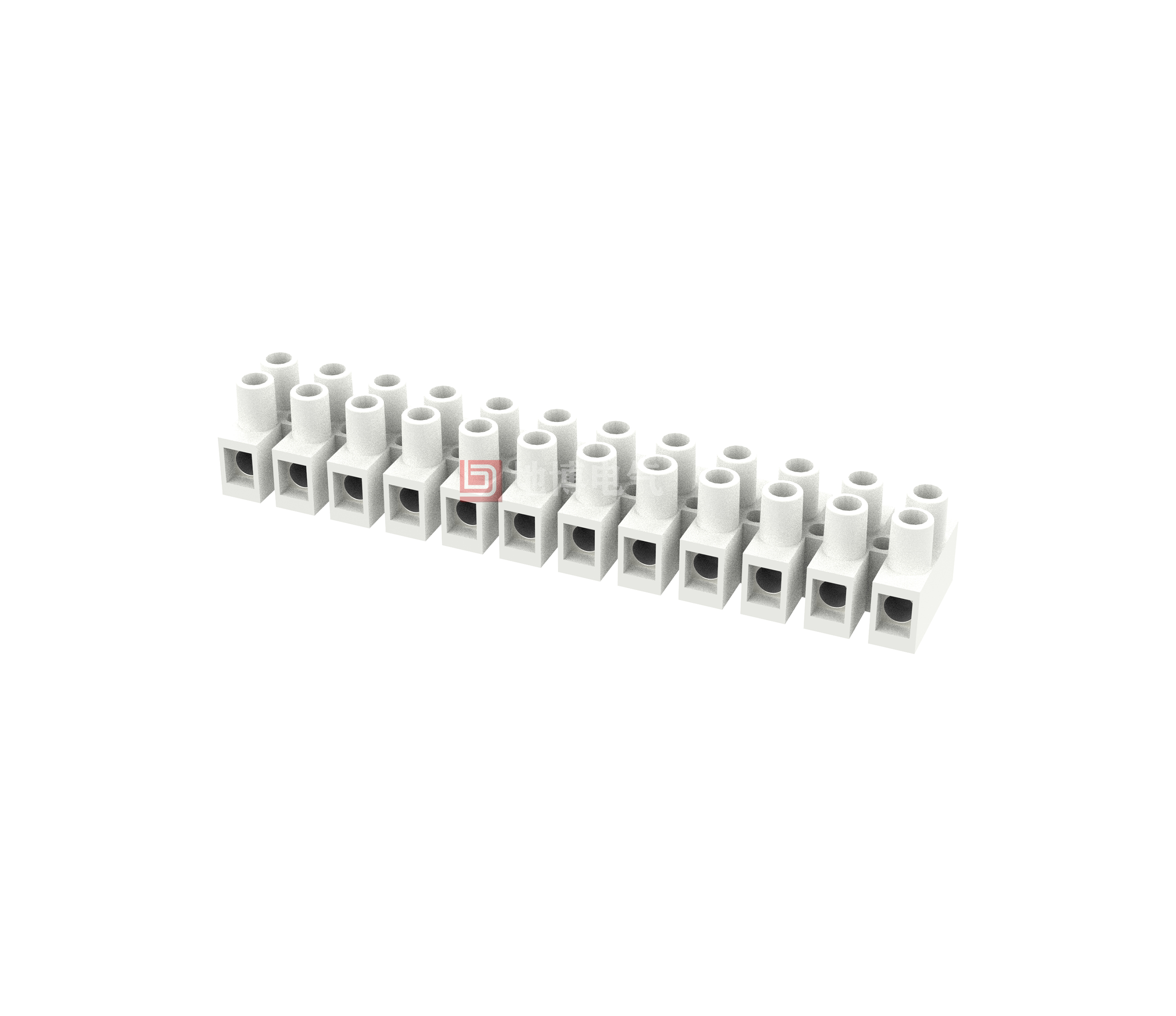

Terminal block DB12H-12.0

Through terminals, nominal cross-section: 6.0 mm2, Colour: natural, Rated current: 41 A, Rated voltage (III/2): 500 V, Pin pitch: 12.0 mm, Contact surface: zinc, Contact type: hole connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connection capacity: 2-12, Product series: DB12H, Wiring method: crimped Screw connection, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: carton

Advantages

☑ Horizontal wire-to-wire connection possible
☑ Panel mounting for a wide range of applications

0
Views: 6,010
Contact usDownload PDF View 3D Download CAD

  •

    Material information



    Screws
    PA66，UL94V-2
    Solder foot
    M3.5，Steel，Zn plated
    Plastic parts
    Copper alloy，Ni plated



    Electrical performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 500V
    Rated current
    35A 41A
    Wire diameter used
    20-8AWG 6mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2200V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    0.8Nm（7.2Lb.in）

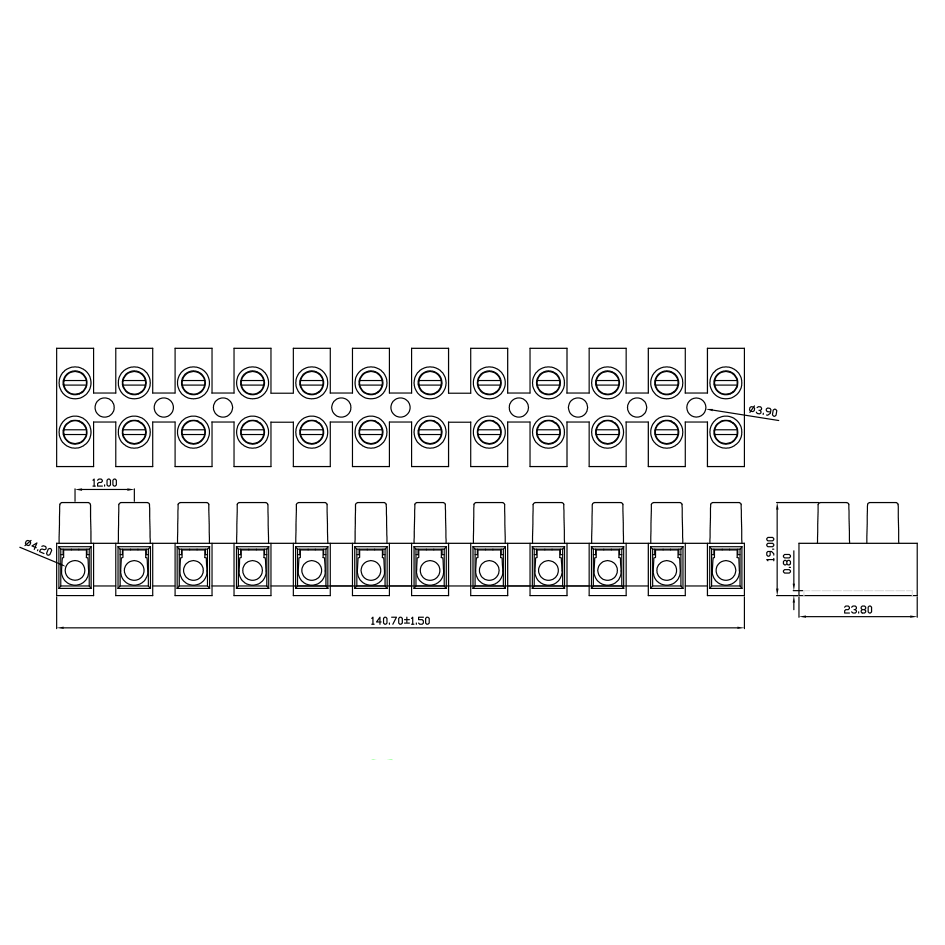

    Dimensional drawings
