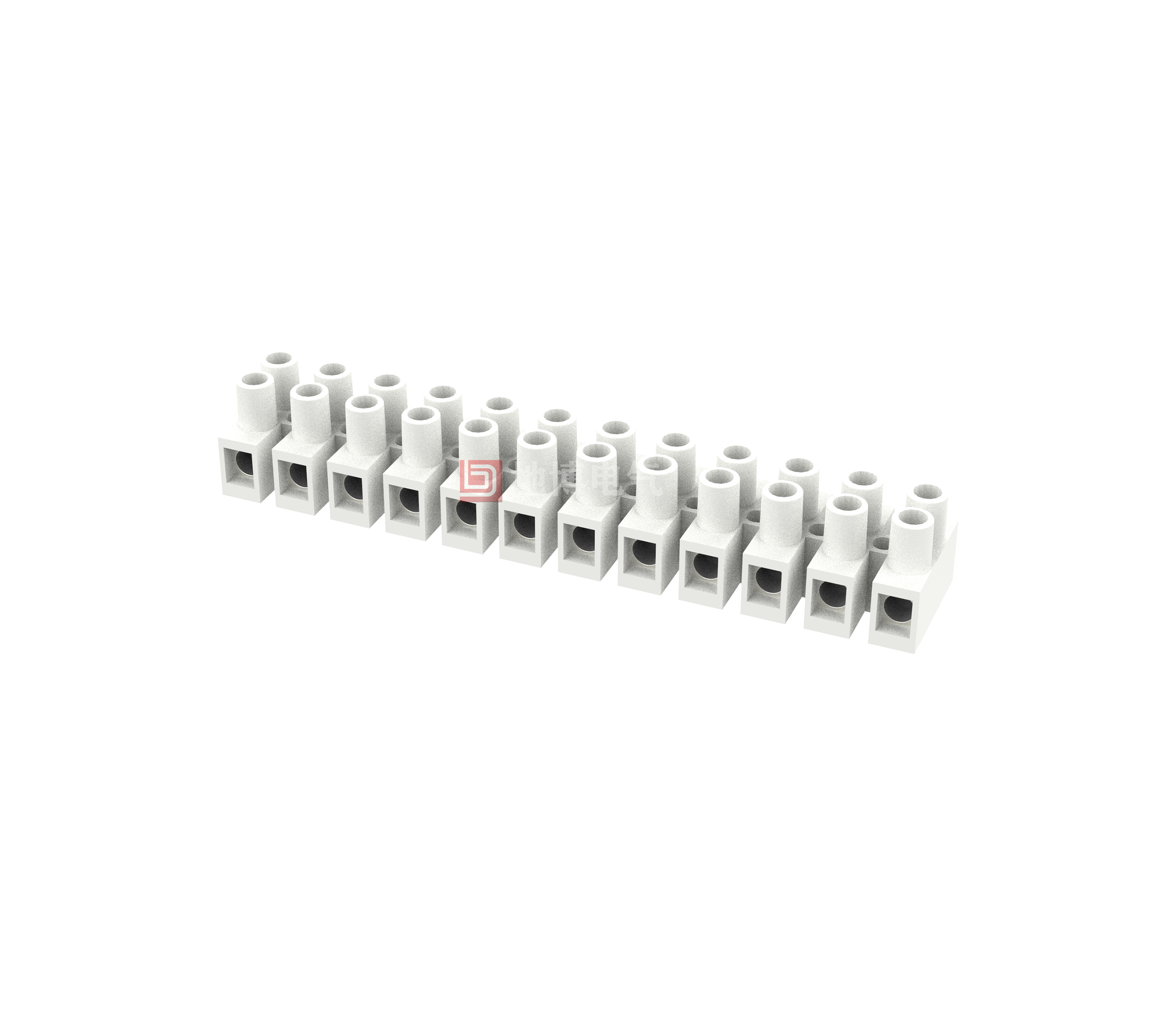

Terminal block DB14H-13.5

Through terminals, nominal cross-section: 10.0 mm2, Colour: natural, Rated current: 57 A, Rated voltage (III/2): 750 V, Pin pitch: 13.5 mm, Contact surface: zinc, Contact type: hole connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connection capacity: 2-12, Series: DB14H, Wiring method: screw connection with crimp, Screw head: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: carton Screw connection with tabs, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: carton

Advantages

☑ Horizontal wire-to-wire connection possible
☑ Panel mounting for a wide range of applications

0
Views: 837
Contact usDownload PDF View 3D Download CAD

  •

    Material information



    Screws
    PA66，UL94V-2
    Solder foot
    M4，Steel，Zn plated
    Plastic parts
    Copper alloy，Ni plated



    Electrical performance



    Reference Standards
    UL IEC
    Rated voltage
    600V 750V
    Rated current
    50A 57A
    Wire diameter used
    20-8AWG 10mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2500V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    1.2Nm（10.8Lb.in）

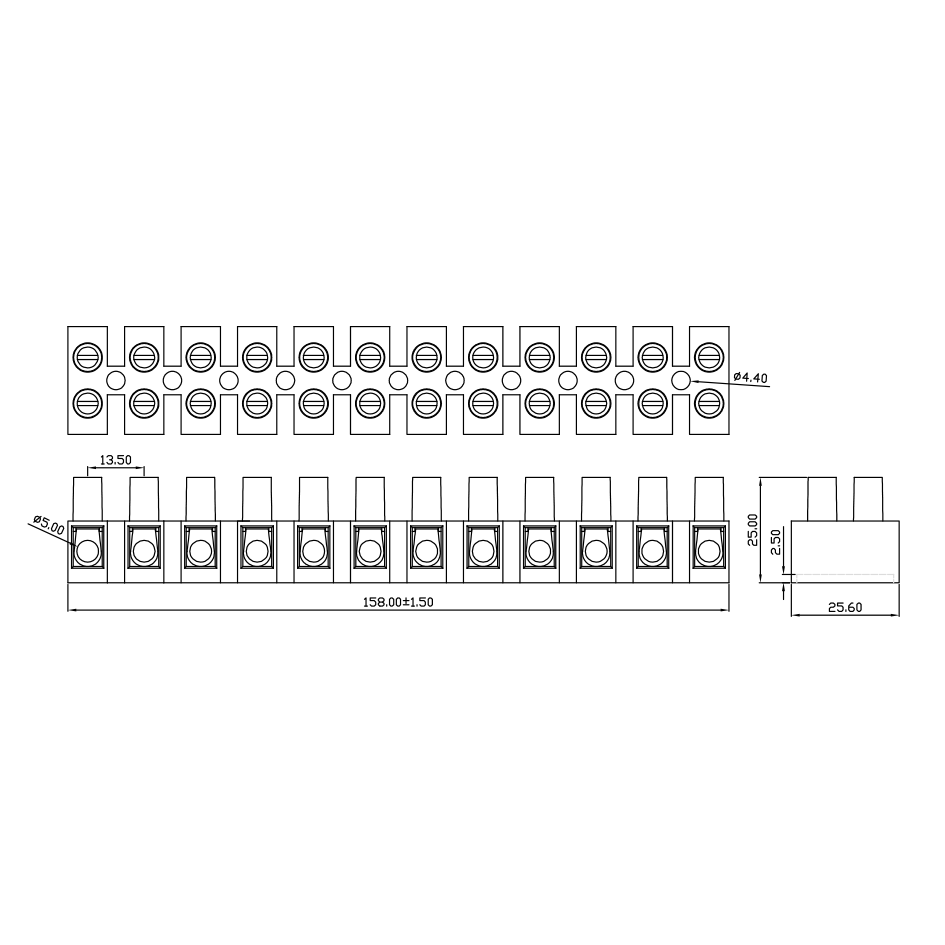

    Dimensional drawings
