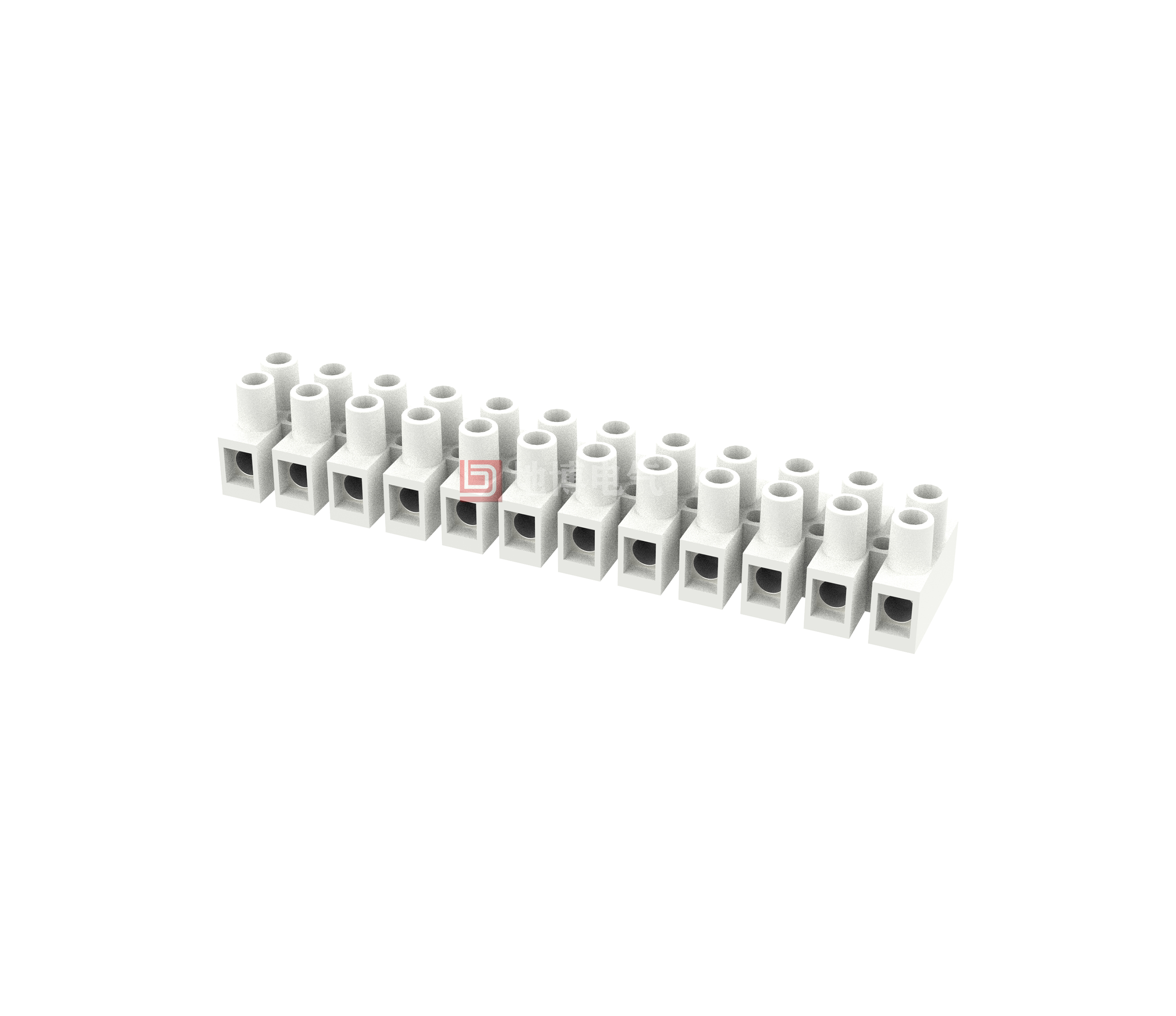

Terminal block DB10H-10.0

Through terminals, nominal cross section: 2.5 mm2, Colour: natural, Rated current: 41 A, Rated voltage (III/2): 450 V, Pin spacing: 10.0 mm, Contact surface: zinc, Contact type: Hole connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connection capacity: 2-12, Product series: DB10H, Wiring method: Crimp with Screw connection, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: carton

Advantages

☑ Horizontal wire-to-wire connection possible
☑ Panel mounting for a wide range of applications

0
Views: 823
Contact usDownload PDF View 3D Download CAD

  •

    Material information

    Screws
    PA66   UL94V-2
    Solder foot
    M3 Steel Zn plated
    Plastic parts
    Copper alloy   Zn plated

    Electrical performance

    Reference Standards
    UL IEC
    Rated voltage
    300V 450V
    Rated current
    30A 24A
    Wire diameter used
    20-10AWG 2.5mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2200V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    0.5Nm（4.4Lb.in）

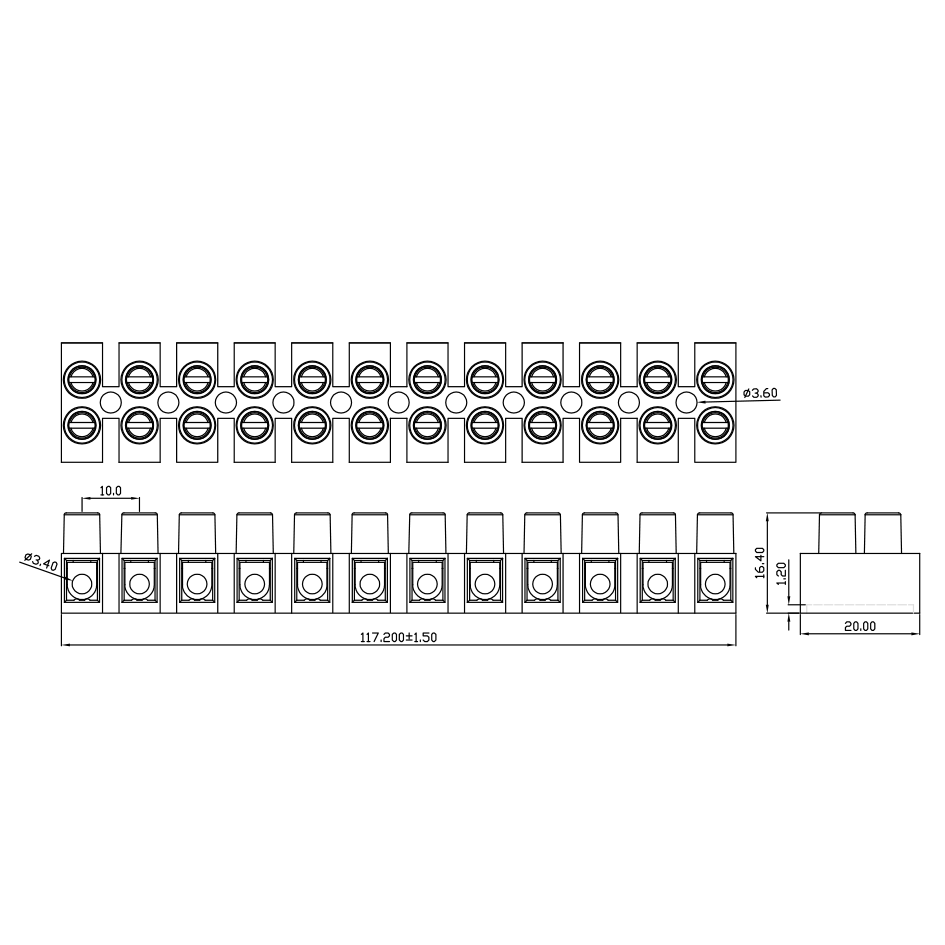

    Dimensional drawings
