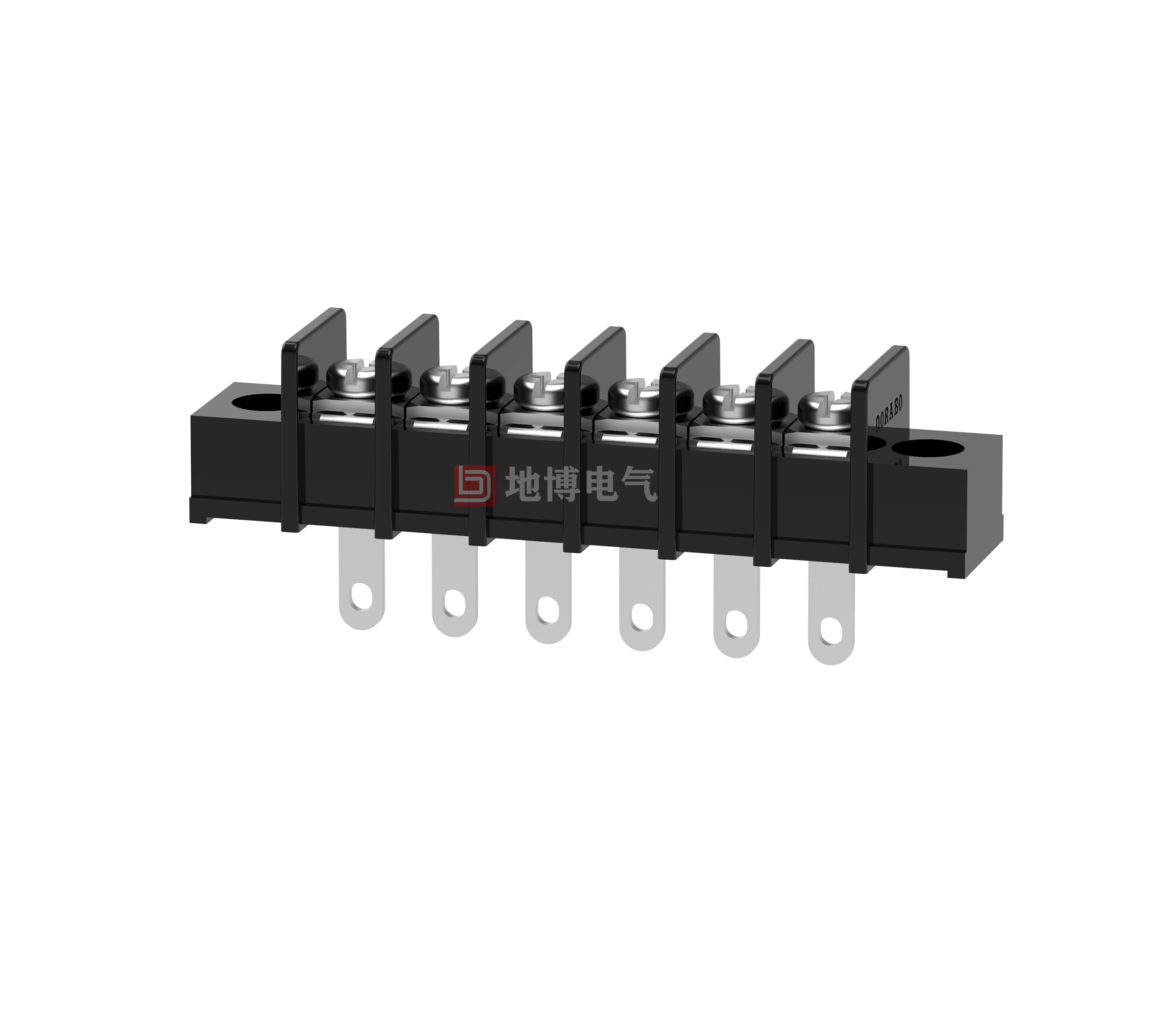

PCB terminal DBT30HM-8.25

Single Barrier Terminal Block, Nominal Operating Current: 20 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 22-12AWG, Number of Positions: 2-24, Number of Rows: 1, Number of Positions per Row: 2-24, Series: DBT30HM, Pin Pitch: 8.25 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Colour: black, Pin arrangement: straight, Pin [P]: 3.6 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Screw connection for worldwide use
☑ Barred wiring construction for stable and reliable connections
☑ Solder plate mounting for electrical connection of the device to the PCB

0
Views: 2,434
Contact usDownload PDF View 3D Download CAD

  •

    Material information



    Screws
    M3.0 Steel Ni plated
    Solder foot
    Copper alloy，Sn plated
    Plastic parts
    PA66，UL9



    Electrical performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 250V
    Rated current
    20A 24A
    Wire diameter used
    20-12AWG 2.5mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2000V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    5.1Kgf.cm/0.5Nm/4.43Lb.in
