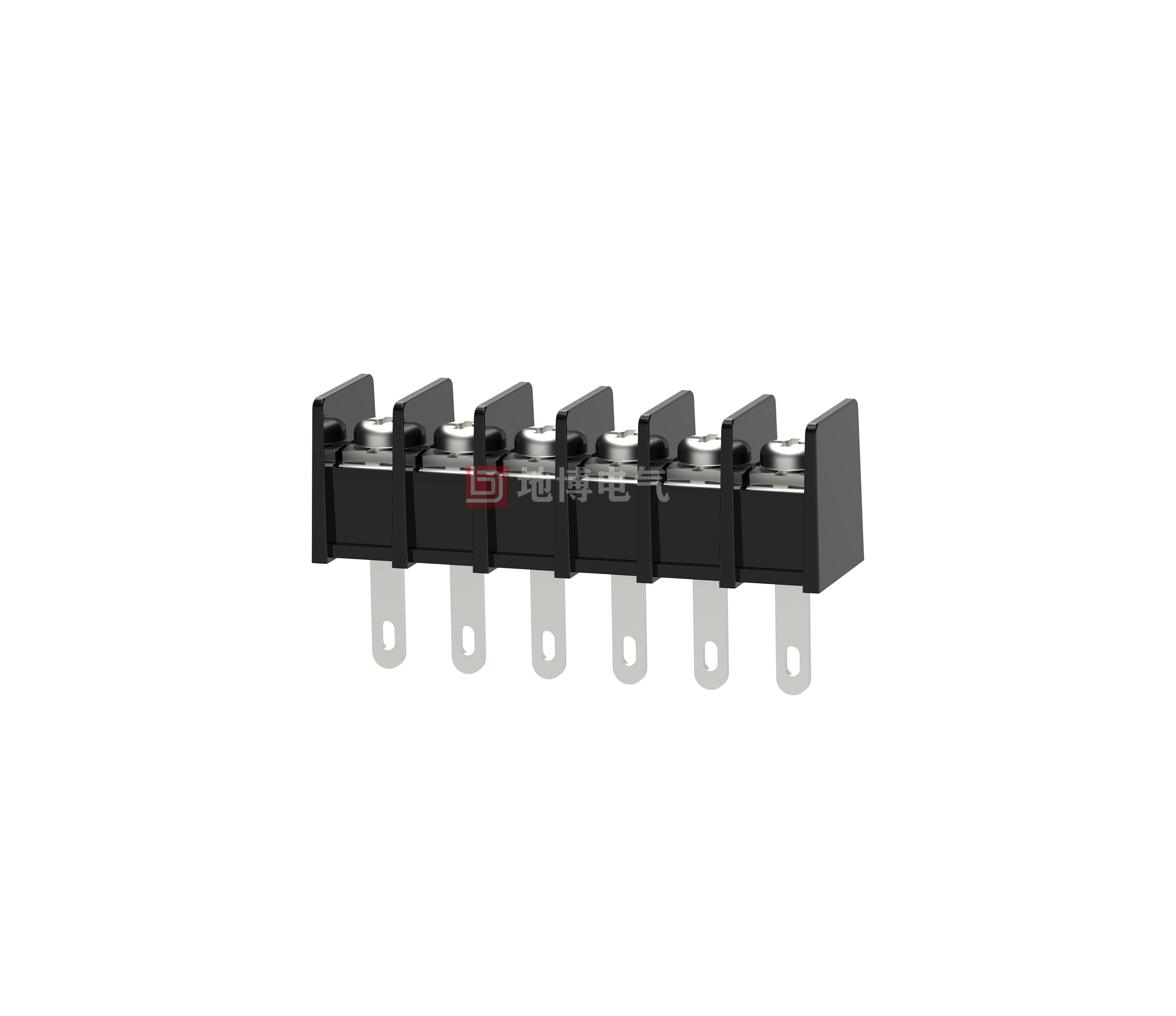

PCB terminal DBT30H-8.25

Single Barrier Terminal Block, Nominal Operating Current: 20 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 22-12AWG, Number of Positions: 2-24, Number of Rows: 1, Number of Positions per Row: 2-24, Series: DBT30H, Pin Pitch: 8.25 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Colour: black, Pin arrangement: straight, Pin [P]: 3.6 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Screw connection for worldwide use
☑ Barrier wiring construction for stable and reliable connections
☑ Solder plate mounting for electrical connection of the device to the PCB

0
Views: 2,630
Contact usDownload PDF View 3D Download CAD

  •

    Material

    Screws
    M3.0 Steel Ni plated
    Pin Header
    Copper alloy，Sn plated
    Housing
    PA66，UL94V-0



    Electrical

    Standard
    UL IEC
    Rated voltage
    300V 250V
    Rated current
    20A 24A
    Wire range
    20-12AWG 2.5mm²
    Contact Resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Withstanding voltage
    AC2000V/1Min
    Temp.range
    -40℃~+105℃
    Torque
    5.1Kgf.cm/0.5Nm/4.43Lb.in





    Dimensional drawings





    PCB cut-out diagram
