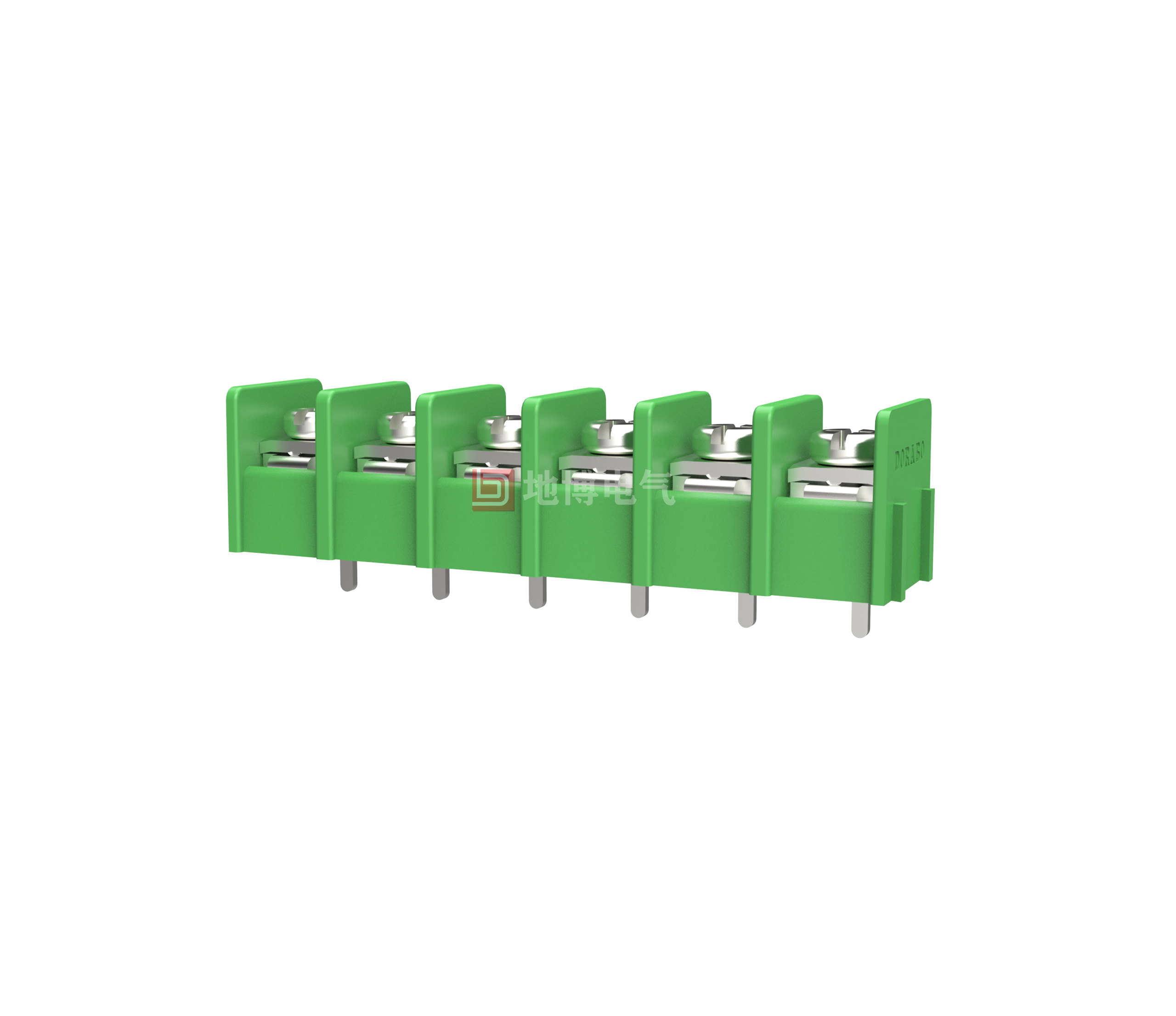

PCB terminal DBT10-7.62

Single Barrier Terminal Block, Nominal Operating Current: 20 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 22-12AWG, Number of Positions: 2-24, Number of Rows: 1, Number of Positions per Row: 2-24, Series: DBT10, Pin Pitch: 7.62 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering, Wire Leads / PCB connection direction: 0°, Colour: black, Pin arrangement: straight, Solder pin [P]: 3.6 mm, Number of pins per potential: 1, Packaging type: carton

Advantages

☑ Screw connection for worldwide use
☑ Barred wiring structure for stable and reliable connections
☑ Solder plate mounting for electrical connection of the device to the PCB

0
Views: 2,696
Contact usDownload PDF View 3D Download CAD

  •

    Material Information



    Screws M3.0 Steel Ni plated
    Solder foot Copper alloy，Sn plated
    Plastic parts  PA66，UL94V-0



    Electrical Performance



    Reference Standards UL  IEC
    Rated voltage  300V  450V
    Rated current  15A  17.5A
    Wire diameter used  22-14AWG  1.5mm²
    Contact resistance  20mΩ
    Insulation resistance  500MΩ/DC500V
    Voltage resistance  AC2000V/1Min
    Temperature range  -40℃~+105℃
    Torque   5.1Kgf.cm/0.5Nm/4.43Lb.in





    Size Chart





    PCB opening diagram
