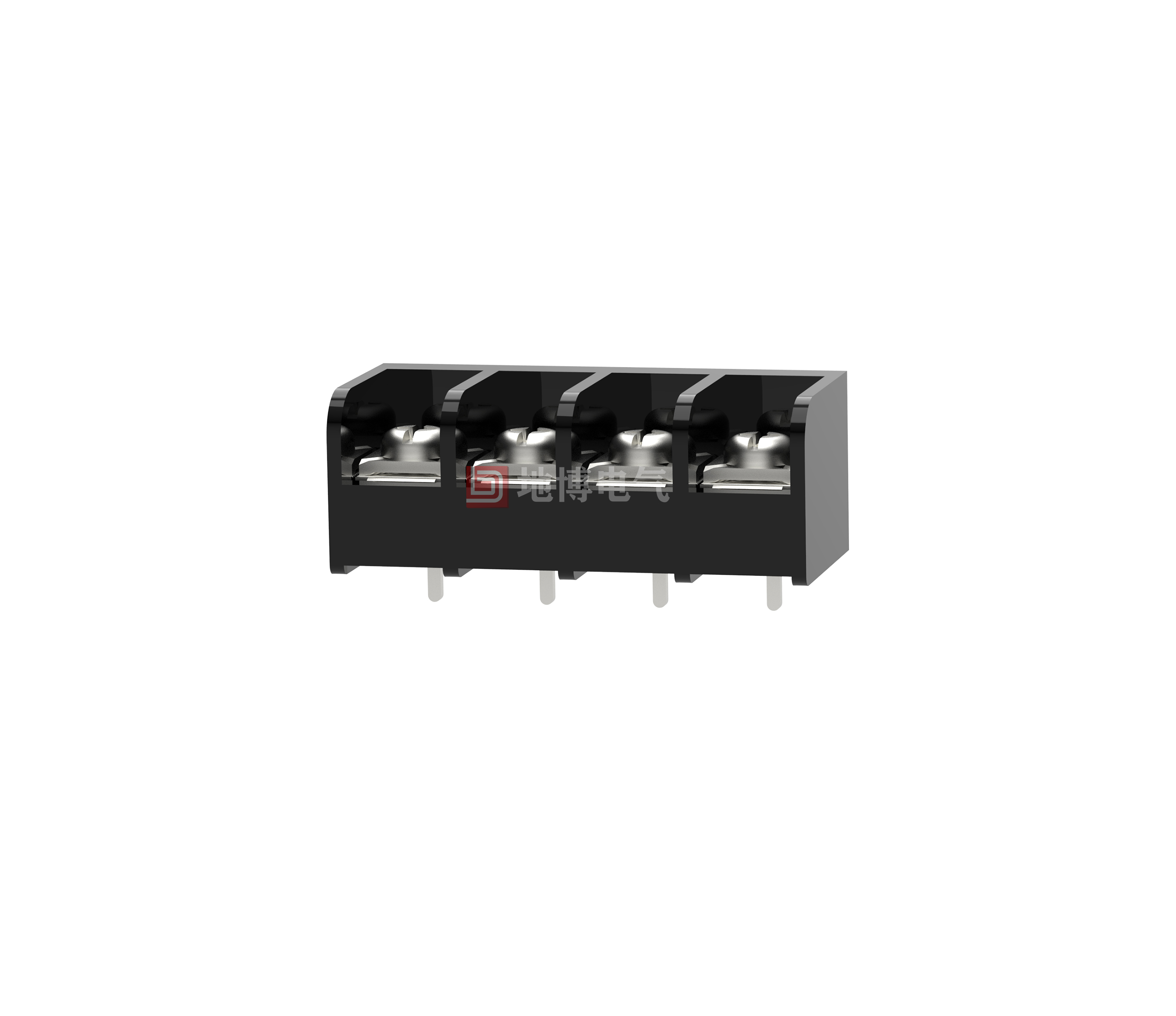

PCB terminal DBT50-11.11

Single Barrier Terminal Block, Nominal Operating Current: 30 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 18-10AWG, Number of Potentials: 2-16, Number of Rows: 1, Number of Positions per Row: 2-16, Series: DBT50, Pin Pitch: 11.11 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Color: Black, Pin alignment: Straight, Pin [P]: 3.8 mm, Number of pins per potential: 1, Package type: Carton

Advantages

☑ Screw connection method for worldwide use
☑ Fence type wiring structure, stable and reliable connection
☑ Solder plate mounting for electrical connection of the device to the PCB
0
Views: 40,969
Contact usDownload PDF View 3D Download CAD

  •

    Material Information



    Screws
    M4.0 Steel Ni plated
    Solder foot
    Copper alloy，Sn plated
    Plastic parts
    PA66，UL94V-0



    Electrical Performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 750V
    Rated current
    30A 41A
    Wire diameter used
    18-10AWG 6mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2000V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    12.24Kgf.cm/1.2Nm/10.6Lb.in





    Size Chart





    PCB opening diagram
