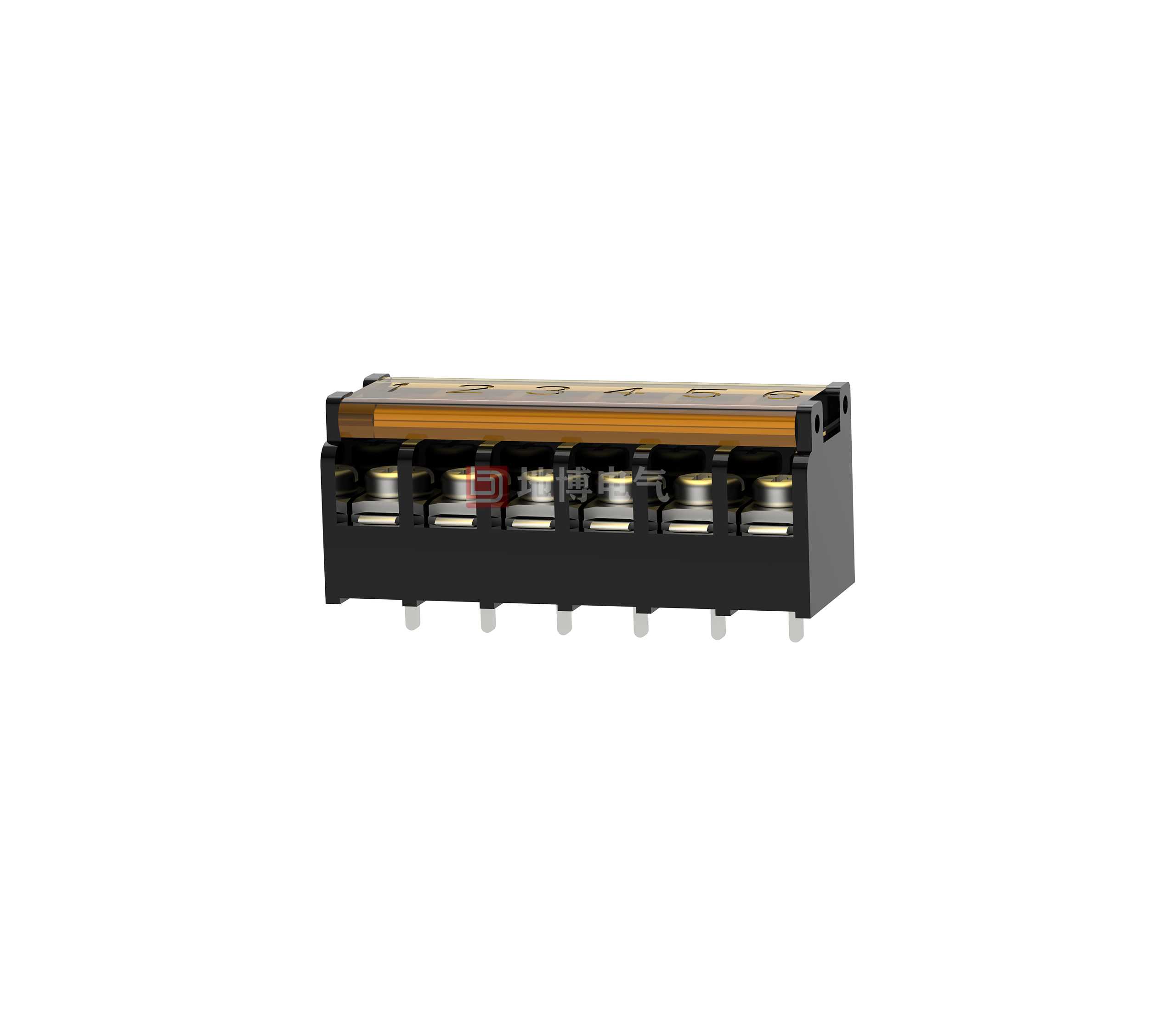

PCB terminal DBT50G-6.35

Single Barrier Terminal Block, Nominal Operating Current: 10 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 22-16AWG, Number of Potentials: 2-24, Number of Rows: 1, Number of Positions per Row: 2-24, Series: DBT50G, Pin Pitch: 6.35 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Color: Black, Pin alignment: Straight, Pin [P]: 3.6 mm, Number of pins per potential: 1, Package type: Carton

Advantages

☑ Screw connection method for worldwide use
☑ Fence type wiring structure, stable and reliable connection
☑ Solder plate mounting for electrical connection of the device to the PCB
0
Views: 23,269
Contact usDownload PDF View 3D Download CAD

  •

    Material



    Screws
    M3.0 Steel Ni plated
    Pin Header
    Copper alloy，Sn plated
    Housing
    PA66，UL94V-0

    Electrical

    Standard
    UL IEC
    Rated voltage
    300V 250V
    Rated current
    10A 17.5A
    Wire range
    22-16AWG 1.5mm²
    Contact Resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Withstanding voltage
    AC2000V/1Min
    Temp.range
    -40℃~+105℃
    Torque
    5.1Kgf.cm/0.5Nm/4.43Lb.in
