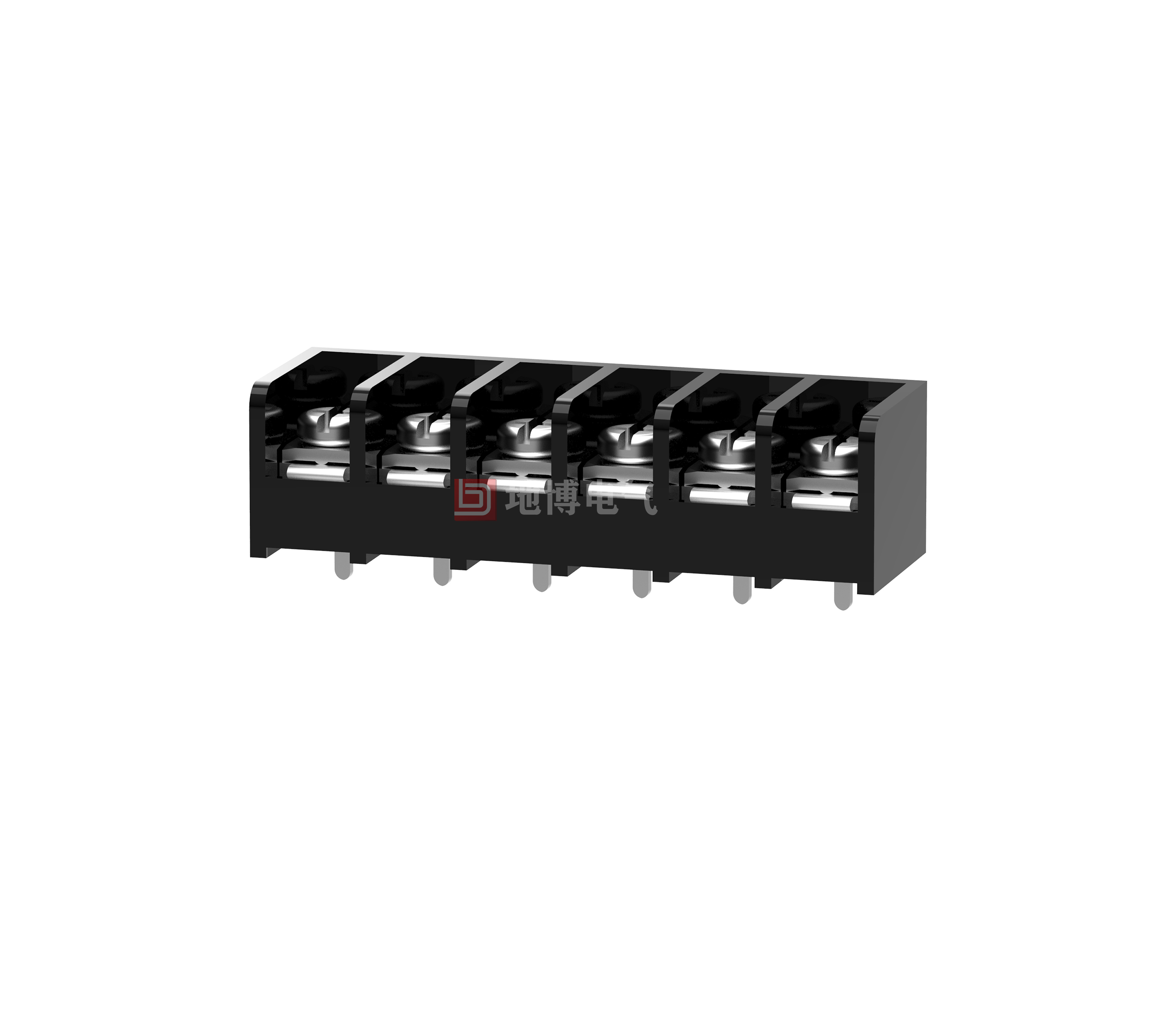

PCB terminal DBT50-7.62

Single Barrier Terminal Block, Nominal Operating Current: 20 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 22-12AWG, Number of Potentials: 2-24, Number of Rows: 1, Number of Positions per Row: 2-24, Series: DBT50, Pin Pitch: 7.62 mm, Wiring Method: Screw Connection with Tab, Screw Head Size: Cross Slotted, Mounting: Wave Soldering, Wire Leads / PCB connection direction: 0°, color: black, pin arrangement: straight, pin [P]: 3.6 mm, number of pins per potential: 1, package type: carton

Advantages

☑ Screw connection method for worldwide use
☑ Fence type wiring structure, stable and reliable connection
☑ Solder plate mounting for electrical connection of the device to the PCB
0
Views: 23,347
Contact usDownload PDF View 3D Download CAD

  •

    Material Information



    Screws
    M3.0 Steel Ni plated
    Solder foot
    Copper alloy，Sn plated
    Plastic parts
    PA66，UL94V-0



    Electrical Performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 400V
    Rated current
    20A 24A
    Wire diameter used
    22-12AWG 4mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2000V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    5.1Kgf.cm/0.5Nm/4.43Lb.in
