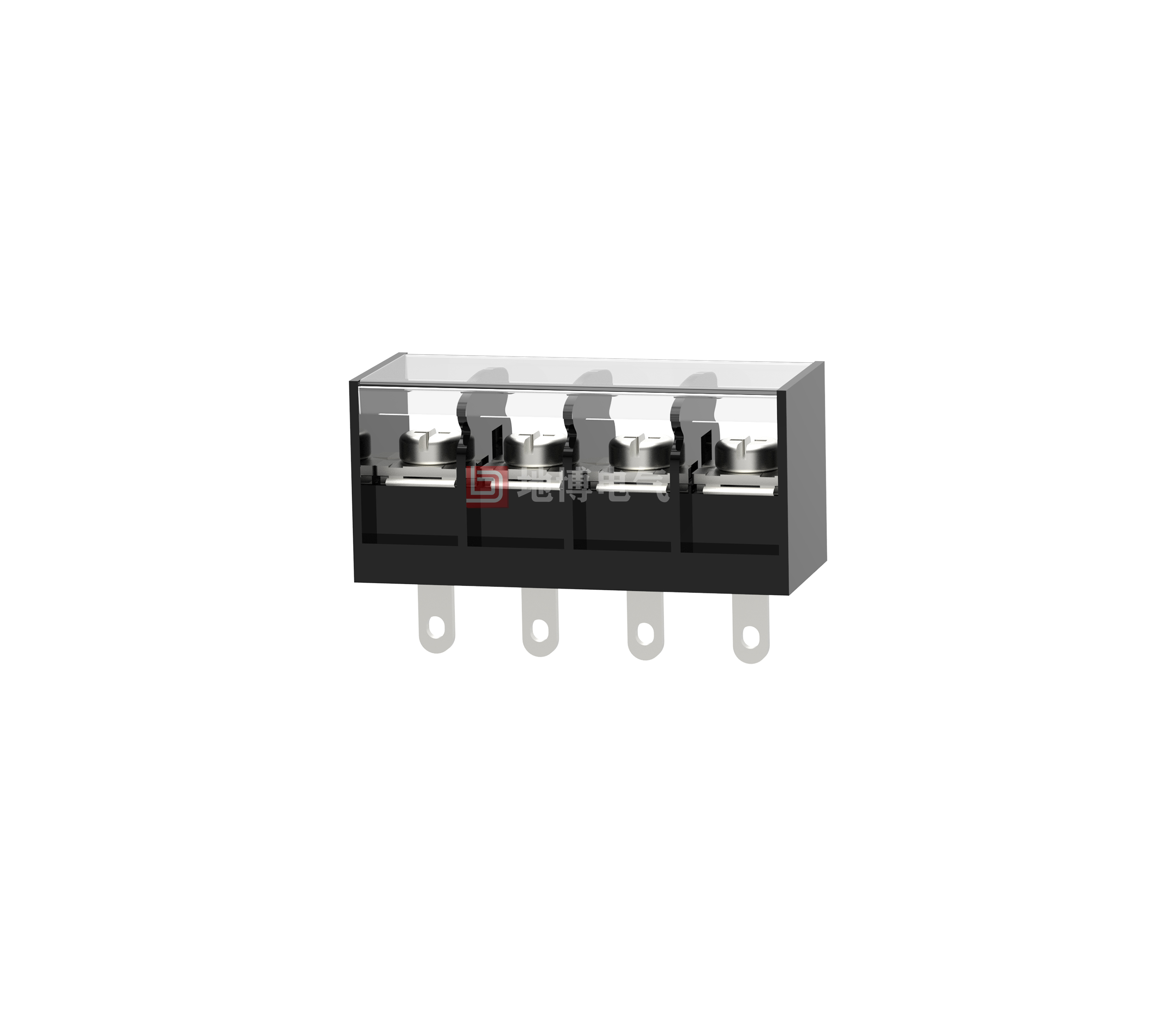

PCB terminal DBT40H-13.0

Single Barrier Terminal Block, Nominal Operating Current: 40 A, Rated Voltage (III/2): 600 V, Rated Cross Section: 18-10AWG, Number of Positions: 2-12, Number of Rows: 1, Number of Positions per Row: 2-12, Series: DBT40H, Pin Pitch: 13.0 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Colour: black, Pin arrangement: straight, Pin [P]: 3.8 mm, Number of pins per potential: 1, Packing type: carton

Advantage

☑ Screw connection method for worldwide use
☑ Barrier type wiring structure for stable and reliable connections
☑ Solder plate mounting for electrical connection of the device to the PCB
0
Views: 20,521
Contact usDownload PDF View 3D Download CAD

  •

    Material information



    Screws
    M4.0 Steel Ni plated
    Pin Header
    Copper alloy，Sn plated
    Housing
    PA66，UL94V-0



    Electrical performance



    Standard
    UL IEC
    Rated voltage
    600V 630V
    Rated current
    40A 41A
    Wire range
    18-10AWG 6mm²
    Contact Resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Withstanding voltage
    AC2000V/1Min
    Temp.range
    -40℃~+105℃
    Torque
    12.24Kgf.cm/1.2Nm/10.6Lb.in





    Dimensional drawings





    PCB cut-out diagram
