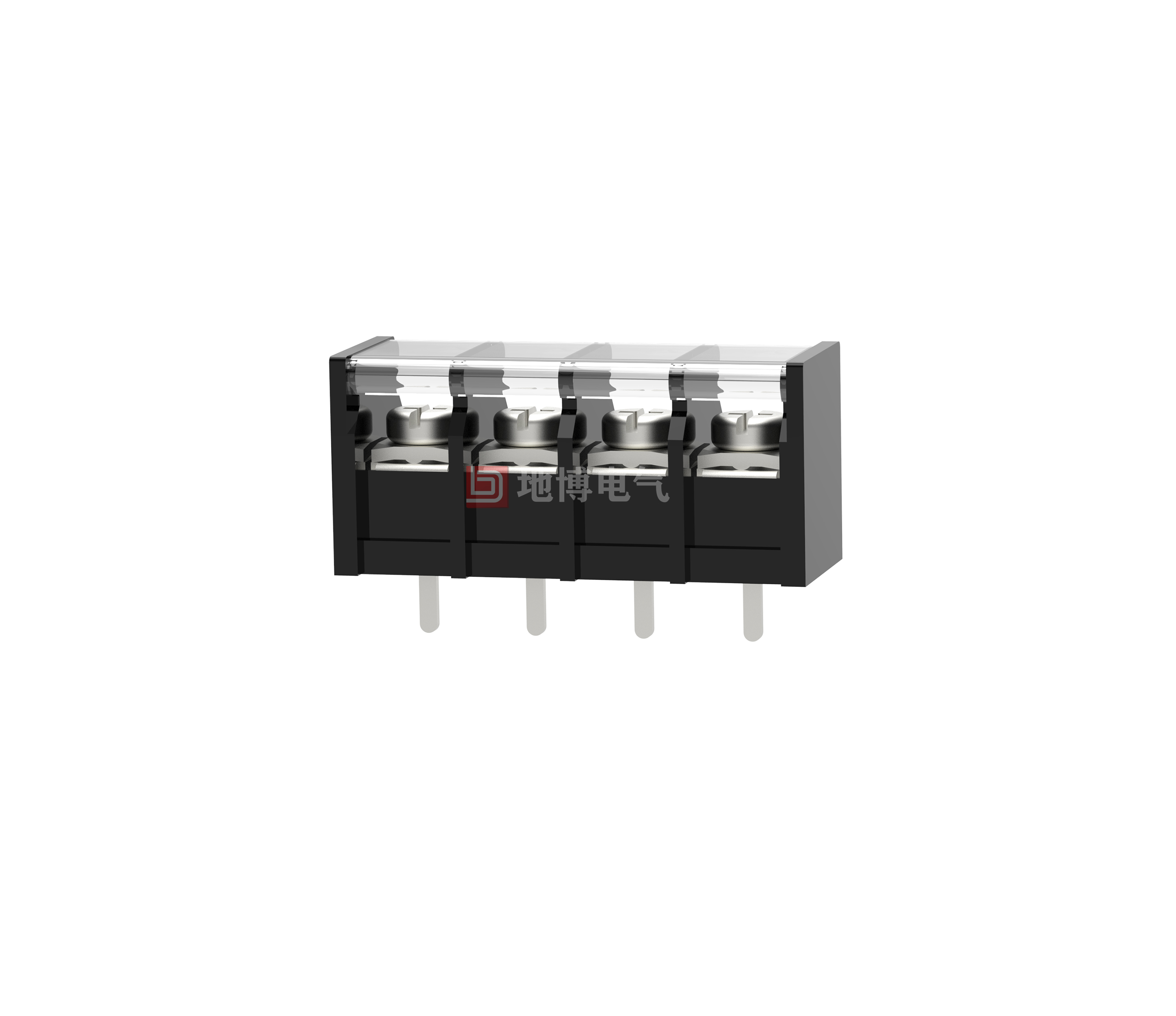

PCB terminal DBT40S-9.5

Single-layer fence terminal block, nominal working current: 20 A, rated voltage (III/2): 300 V, rated cross section: 22-12AWG, number of electric digits: 2-24, number of rows: 1, number of digits per row: 2-24, product series: DBT40S, pin pitch: 9.5 mm, wiring method: screw connection with compression plate, screw head specification: cross slot, installation: wave soldering, wire/PCB connection direction: 0 °, color: black, pin arrangement: linear arrangement, Welding pin [P]: 3.8 mm, number of welding pins per potential: 1, packaging type: carton packaging

Advantage

☑ Screw connection mode, which can be used worldwide
☑ Fence-type wiring structure, stable and reliable connection
☑ Solder board installation can realize electrical connection between equipment and PCB
0
Views: 2,361
Contact usDownload PDF View 3D Download CAD

  •

    Material information



    Screws
    M4.0 Steel Ni plated
    Solder foot
    Copper alloy，Sn plated
    Plastic parts
    PA66，UL94V-0



    Electrical performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 400V
    Rated current
    20A 24A
    Wire diameter used
    22-12AWG 2.5mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2000V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    12.24Kgf.cm/1.2Nm/10.6Lb.in





    Size Chart







    PCB opening diagram
